THE LIGHT DUTY RESCUE – no distraction. just rescue.
Compact and efficient, the Light Duty Rescue is designed for quick response and essential fire safety support. As a versatile rescue apparatus, the Light Duty Rescue can be used for many different emergency response situations. This fire apparatus is made up of:
- A Ford F-550 4×4 with a 6.7L PowerStroke V8 Turbo Diesel engine that delivers 330 HP for reliable performance.
- An 11′ aluminum body includes AMDOR roll-up doors and six compartments (three per side) for organized gear storage.
- Whelen lighting and a siren speaker for visibility during emergency services.
- A fuel tank with a 40-gallon capacity
- A rear camera for added safety
Trucks shown may contain optional features.
FEATURES
-
Ford F-550 4×4
-
6.7L PowerStroke V8 Turbo Diesel, 330 HP
-
11′ Aluminum rescue body
- AMDOR roll-up doors
-
3 Compartments on each side
- Whelen Siren Speaker
-
Whelen Lighting package
Features may vary based on your location and customization needs.
- Chassis: Ford F-550, 4×4, DRW
- Engine: 6.7L PowerStroke V8 Turbo Diesel, 330 HP
- Transmission: Torqshift 10-speed automatic
- Auxiliary Air Compressor: Kussmaul 12V auxiliary air compressor
- Fuel Tank Capacity: 40 gallons
- Center Console: Yes
- Back-up Alarm: One (1), 97 dB
- Body Dimensions: 132″ L × 94″ W × 64.125″ H
- Body: 11′ Aluminum rescue body
- Compartment Door Type: AMDOR roll-up doors, satin finish
- 3 Compartments LH & RH side: Two (2) 51″ W x 53″ H, Two (2) 21″ W x 53″ H, One (1) 49.75″ W x 30.313″ H, and One (1) 49.75″ W x 32″ H
- 1 Rear Compartment: 49.75″ W x 46.90″ H
- SCBA Bottle Compartments: 3 total (1 LH, 2 RH)
- Rear Camera
- Additional: Custom in-house graphics can be applied to the unit
- 12 Volt Electrical System: Yes
- Cab Ground Lights: Four (4) LED chassis ground lights
- Ground Lights Activation: Ground lights activate when the parking brake is applied
- Emergency Lights: Whelen M Series Emergency Lights
- Warning & Scene Lights: Whelen M Series Emergency Lights
- Lightbar: One (1) Whelen model JE2NFPA
- Siren and Control: One (1) Whelen SA315P, 100W
Contact your local dealer to discuss their customization options.
Download the Full Specs and Sales Drawing Here:
3D WALKAROUND
Recently delivered

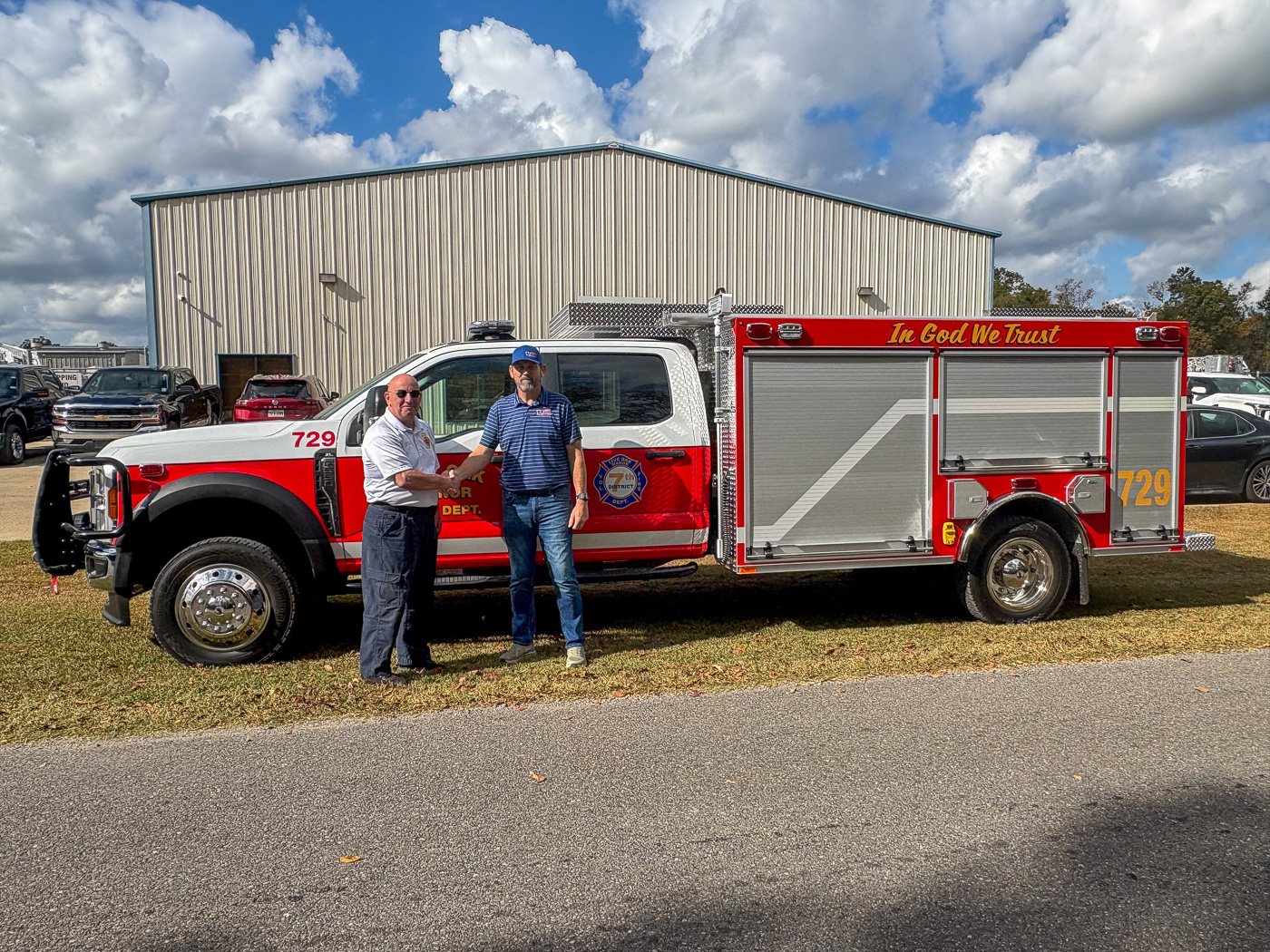

Department: Live Oak Manor Volunteer Fire Department
Location: Waggaman, LA

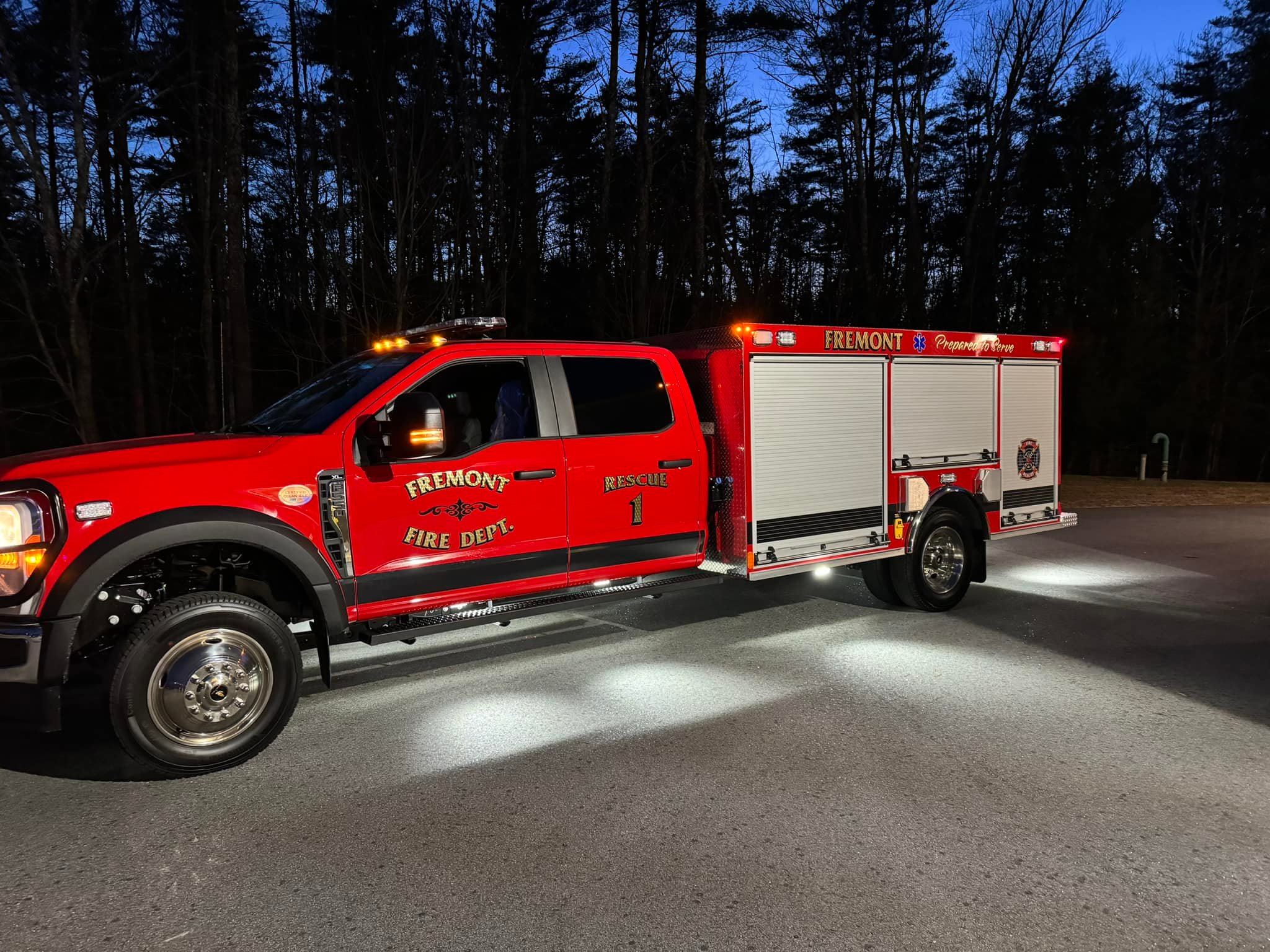

DEPARTMENT: FREMONT NH FIRE RESCUE DEPARTMENT
LOCATION: FREMONT, NH

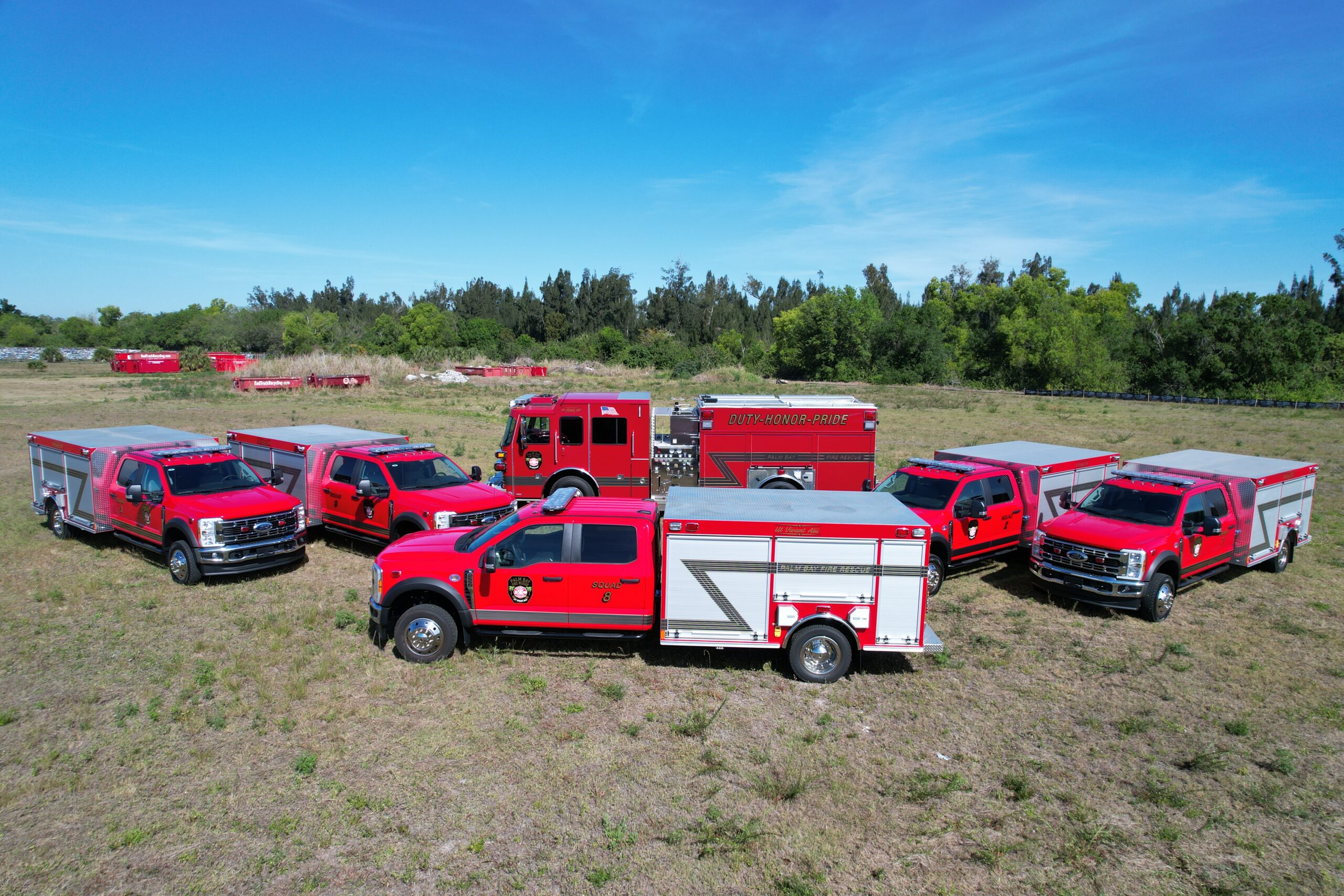

DEPARTMENT: PALM BAY FIRE RESCUE
LOCATION: PALM BAY, FL
