4000 GALLON TANKER

The supercharged 4000 Gallon is here

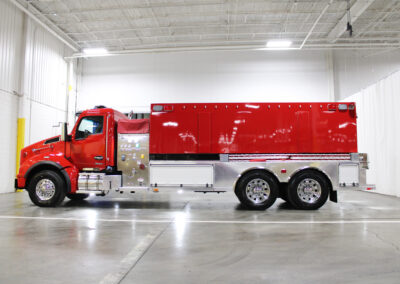

Trucks shown may contain optional features.

In 2023, we added a new fire tanker to our fleet of high-performance fire apparatus, engineered to take on even tougher fire ground demands than our 3000 Gallon Tanker. The Fouts Fire 4000 Gallon Tanker is built on a durable Kenworth T-880 chassis and powered by a Cummins X15 565EV engine. With a 1500 GPM Hale Qmax pump, a 4000-gallon poly tank, and massive onboard storage, this fire truck is mission-ready for water shuttle operations, wildland fire response, and rural area deployments.

View the specs below, take a virtual 3D tour, and contact us to request a quote. We have units available now across the United States.

4000 GALLON TANKER FEATURES

  • Kenworth T-880 2-door chassis
  • Cummins X15 565 HP engine
  • Allison 4500 EVS 5-speed transmission
  • Hale Qmax 1500 GPM pump
  • 4000 gallon poly tank
  • 4000 gallon folding tank
  • Three (3) large water level gauges
  • One (1) 10″ Newton swivel dump valve
  • One (1) 2-1/2″ direct tank fill
  • One (1) 4″ Fireman’s Friend direct tank fill
  • AMDOR roll-up doors
  • Whelen LED NFPA lighting & siren package

Features may vary based on your location and customization needs.

Chassis: Kenworth, T-880, 2-door
Engine: Cummins X15 565 HP
Transmission: Allison 4500 EVS 5-Speed
GVW: 72,000 lbs. (Front Axle: 20,000 lbs. | Rear Axle: 52,000 lbs.)
Wheels: Polished Aluminum
Battery Conditioner: Kussmaul Chief 6012 series battery conditioner
Auxiliary Air Compressor: Kussmaul 12V auxiliary air compressor
Fuel Tank Capacity: 60 gallons
Air Horns: Two (2) Hadley chrome
Center Console: Yes
Tank: 4000 US gallons
Hard Suction: Two (2) 6.00″ x 10′ sections of suction hoses
Body: Aluminum diamond plate
Compartment Door Type: AMDOR roll-up doors, satin finish
Compartment L1 & R1: Approx. 70.00″W x 26.00″D x 27.00″H
Compartment L2 & R2: Approx. 24.00″W x 26.00″D x 27.00″H
Rear Camera Notch: Recessed mounting area for a backup camera
Rear Dump Valve: Swivel and manual extension, stainless steel
Direct Tank Fill: One (1) 2.50″ Akron, one (1) 4″ Akron
Hose Bed Cover: Vinyl
Additional: Custom in-house graphics can be applied to the unit

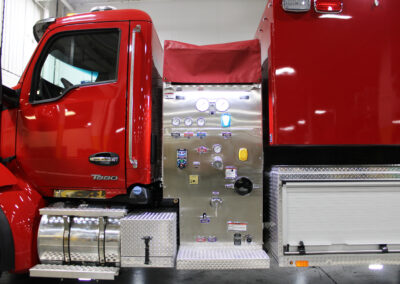

Pump: Hale, QMax, 1500 GPM, side mount
Special Features: Stationary pumping
Power Take Off: 10-bolt Chelsea model 870-XDFJP-B5XV
Pump Shift: Stationary – QMax
Hose Threads: NST hose threads
Master Pump Drain: Class 1 master pump drain
Priming System: Trident model manual AirPrime
Intake Relief Valve: Class 1 stainless-steel intake relief valve
Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
Water Level Gauge: One (1) Innovative Controls Soft-Glo & three (3) Innovative Controls Soft-Glo Mini Monster
Discharges: Four (4) 2.50″, one (1) 3″x5″ deckgun, and two (2) 1.75″
12 Volt Electrical System: Yes
Cab Ground Lights: Two (2) LED chassis ground lights
Ground Lights: Pump panel, front, and rear
Ground Lights Activation: Ground lights activate when the parking brake is applied
Emergency Lights: Whelen M Series Emergency Lights
Scene Lights: Whelen M Series Emergency Lights
Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
Siren and Control: One (1) Federal Signal model ES100

• Multiple dump valve configurations
• Side or top mount pump modules
• Federal Q2B siren
• Hannay electric rewind booster reel
• SCBA bottle holders

THE COMPONENTS YOU NEED

Speed & Strength

Powered by a Kenworth T880 chassis and a Cummins X15 engine, this fire engine delivers over 500 HP for fast response in rugged terrain and weather conditions. The drivetrain is built for reliability during extended use, even under extreme loads and weather.

Tank & Storage

Features a 4000-gallon poly tank and folding water tank, two 70-inch front compartments, and storage space for dual 10-ft 6″ hard suction hoses on top of the cab. These compartments and mounting options accommodate tools like SCBAs, hose fittings, and rescue gear without sacrificing accessibility.

Water Control

Equipped with a 10″ Newton swivel dump valve with 30° locking intervals, extending beyond the body for visibility in rearview mirrors, ideal for tenders, wildfire deployment, and as an addition to departments that need increased water capacity on scene.

FOUTS FIRE TRUCKS AVAILABLE NATIONWIDE

Fouts Fire partners with top fire truck dealers across the United States to deliver firefighting vehicles that meet the high demands of fire departments. From wildland fire units to water tenders for rural areas with limited fire hydrant access, we provide emergency services with high-quality fire apparatus designed for reliability. Whether you’re equipping a municipal fire department or a volunteer crew, we’re ready to supply a fire tanker that matches your needs. Contact us to request a quote or learn about trucks available now.

4000 GALLON TANKER 3D WALKAROUND

4000 GALLON TANKER TOUR

Frequently Asked Questions

What makes the Fouts Fire 4000 Gallon Tanker a smart choice for rural and wildland firefighting?

Designed with remote operations in mind, this fire tanker offers a 4000-gallon poly tank and a 10″ swivel dump valve for fast, controlled water deployment where hydrants aren’t an option. It’s a reliable asset for departments working in rugged terrain or covering large rural areas.

Can this tanker be customized for our fire department’s needs?

Yes. Whether you need additional SCBA holders, lighting upgrades, or unique pump configurations, we offer flexible options to meet your department’s specific needs.

What’s the expected lead time for delivery?

We maintain in-stock units ready for immediate shipment across the United States. Custom builds may vary. Please reach out for current availability and get an instant information package, including pricing, specs, pictures and contact information here.

How does the 4000 Gallon Tanker compare to a standard fire engine?

While a standard fire engine focuses on equipment and personnel, this fire tanker excels in water transport and dump capabilities, essential for areas with limited fire suppression infrastructure.
