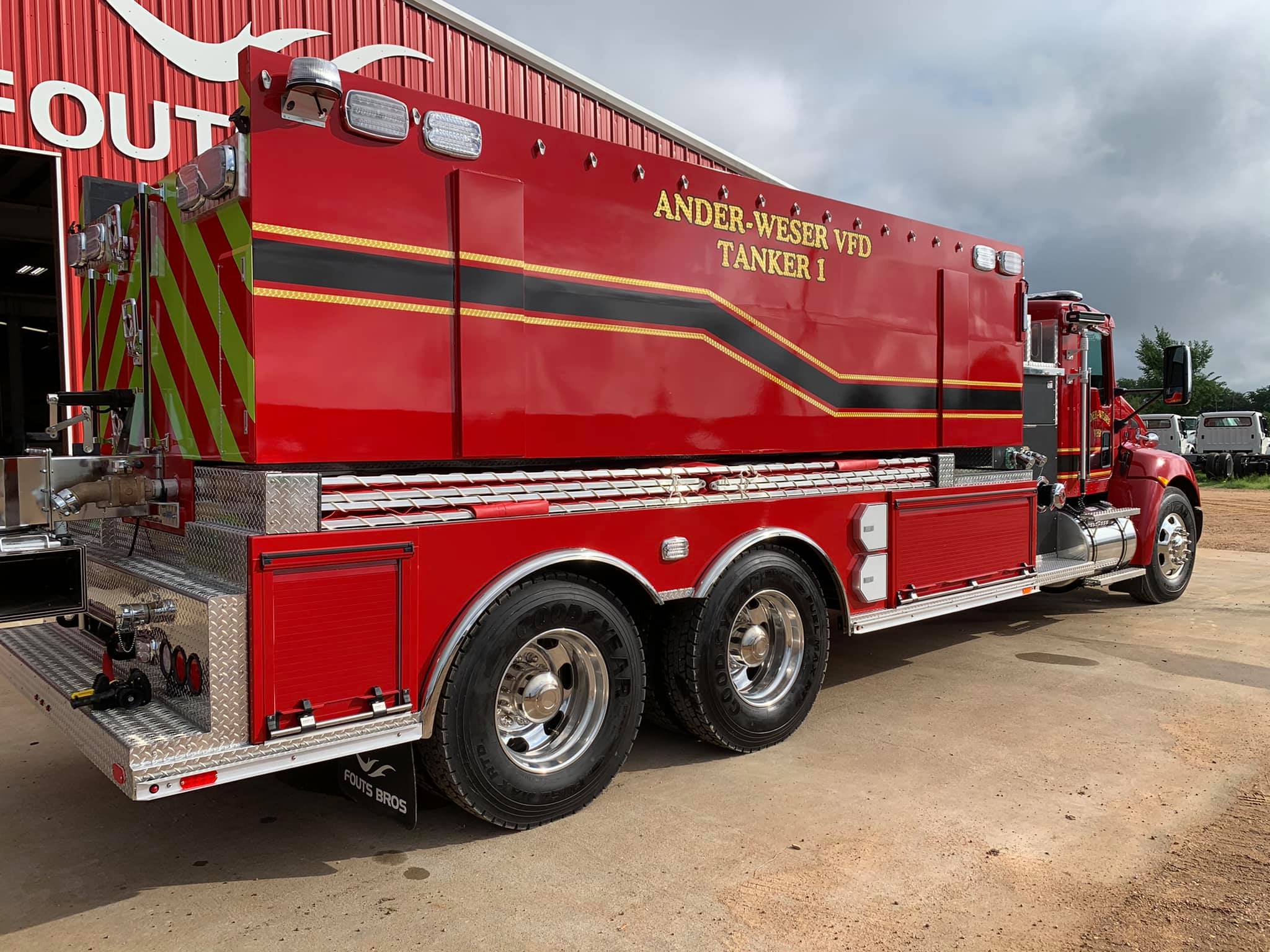

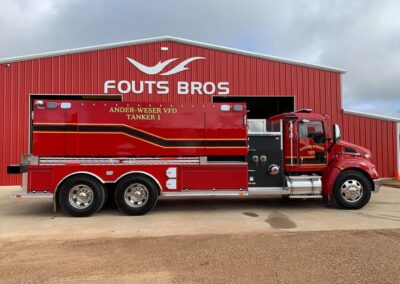

3000 GALLON TANKER
Our trusted workhorse, delivered fast at a great value
Trucks shown may contain optional features.
The original 3000 Gallon Tanker was the first fire apparatus Fouts ever built. These days, Fouts fire fighting vehicles put out fires in almost every state in the U.S. Built to handle the most demanding fire ground conditions, this tanker is designed for first responders who need a dependable tanker/water tender to carry water to the scene. Our standardized manufacturing process allows us to provide fire departments with a high-quality tanker fire truck faster and for less than other manufacturers charge.
See the standard specs for our 3000 Gallon Tanker below. Our sales team is standing by to provide a custom quote and inform you about units in production and available for immediate delivery. Fill out a quote request form or give us a call today.
3000 GALLON TANKER FEATURES
- Kenworth T480 chassis
- PACCAR PX-9 450 HP engine
- Allison 3000 EVS transmission
- Hale 1000 GPM PTO pump
- Three (3) large water level gauges
- 3000 gallon poly tank
- 3000 gallon folding tank
- One (1) 10″ Newton swivel dump valve
- Full-length hose bed
- Two (2) 2-½ inch direct tank fills
- AMDOR roll-up door compartments
- Whelen LED NFPA lighting & siren package
- Chassis: Kenworth, T-480, 2-Door
- Engine: Paccar PX-9, 450 HP – built for fire department operations that demand power
- Transmission: Allison 3000, 5-Speed – designed for high-demand firefighting vehicles
- GVW: 54,600 lbs. (Front Axle: 14,600 lbs. | Rear Axle: 40,000 lbs.)
- Wheels: Polished Aluminum – corrosion-resistant for long-term fire service use
- Battery Conditioner: Kussmaul Chief 6012 series
- Auxiliary Air Compressor: Kussmaul 12V – ensures reliableÂ
- Fuel Tank Capacity: 50 gallons – optimized for long-distance water supply missions
- Air Horns: Two (2) Hadley chrome-plated
- Center Console: Yes – designed for easy fire equipment control & access Â
- Back-up Alarm: One (1) 97 DB for enhanced driver safety
- Tank: 3000 US gallons to carry an ample water supply
- Hard Suction: Two (2) 6.00″ x 10′ sections designed for effective fire hydrant access
- Body: Aluminum diamond plate which is lightweight yet durable fire apparatus body
- Compartment Door Type: AMDOR roll-up doors with a satin finish
- Compartment L1 & R1: Approx. 60.00″W x 26.00″D x 27.00″HÂ
- Compartment L2 & R2: Approx. 24.00″W x 26.00″D x 27.00″H
- Rear Camera Notch: Recessed mounting area for a backup camera
- Rear Dump Valve: A stainless steel swivel and manual extension
- Direct Tank Fill: Two (2) 2.50″ Akron – rapid water pump connections
- Hose Bed Cover: Vinyl – Protects hoses from debris.
- Additional: Custom in-house graphics available –Add logos & striping.
- Pump: Hale, MBP, 1000 GPM, Side Mount with fast water tank refill capability
- Special Features: Pump and RollÂ
- Power Take Off: 10-bolt Chelsea model 870-XDFJP-B5XV
- Pump Shift: Pump and Roll – MBP/RSD, Allows water flow while moving
- NST Hose Threads: compatible with standard fire hydrant connections
- Master Pump Drain: Class 1 master pump drain
- Priming System: Trident model manual AirPrime
- Intake Relief Valve: Class 1 stainless steel intake relief valve
- Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
- Water Level Gauge: One (1) Innovative Controls Soft-Glo & three (3) Innovative Controls Soft-Glo Mini Monster
- Discharges: Four (4) 2.50″ and two (2) 1.75″ for efficient water supply
- 12 Volt Electrical System: Yes
- Cab Ground Lights: Two (2) LED chassis ground lights for night operations
- Ground Lights: Illuminates fire ground areas around the vehicle
- Ground Lights Activation: Activates when the parking brake is applied
- Emergency Lights: Whelen M Series Emergency Lights – NFPA compliant
- Scene Lights: Whelen M Series Emergency LightsÂ
- Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
- Siren and Control: One (1) Federal Signal model ES100
The custom fire apparatus features include:
• Booster reel
• Federal Q2B siren
• Pole lights
THE COMPONENTS YOU NEED
Low Side Storage Compartments
This tanker fire truck features four low side compartments for secure fire equipment storage. This includes a 60″ wide front compartment and a 29″ wide rear compartment for easy-access storage.
Swivel Dump Valve
The stainless steel swivel dump valve allows for controlled water tender distribution. It dumps gallons of water every 30 degrees, with a full 360 degree rotation and manually extends to dump on either side of the truck.
High Power & Performance
This fire engine is equipped with a Cummins L-9 450 HP engine, delivering 1250 lbs of torque for emergency response situations. It also comes with a Hail MVP 1000 GPM pump for quick water delivery.
FOUTS FIRE TRUCKS AVAILABLE NATIONWIDE
We partner with fire departments across the U.S. to provide top-tier fire apparatus. Our team ensures fast delivery time, offering high-quality firefighting vehicles that meet the needs of your department. Explore our inventory and find a Fouts Fire dealer near you or request a custom quote today.
3000 GALLON TANKER 3D WALKAROUND
3000 GALLON TANKER TOUR
FREQUENTLY ASKED QUESTIONS
Can the tanker pump while moving?
Yes, thanks to the Pump and Roll feature, firefighters can deploy water while the tanker fire truck is in motion.
How fast can the 3000 Gallon Tanker dump its full water load?
The swivel dump valve allows for quick water release, dumping gallons of water in seconds. The manual extension feature ensures first responders can control the flow and direction for fire ground efficiency.
How does this tanker handle rough terrain?
Built on a Kenworth T480 commercial chassis, the fire truck is designed for stability and durability, allowing firefighters to navigate tough environments.
What customization options are available?
Departments can choose from larger pumps (up to 1500 GPM), multiple dump valve configurations, deck guns, and additional SCBA bottle holders to meet specific fire service needs.
