2000 GALLON TANKER

Off the beaten path, Our 2000 Gallon tanker can’t be beat

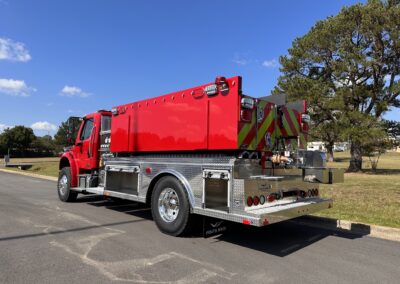

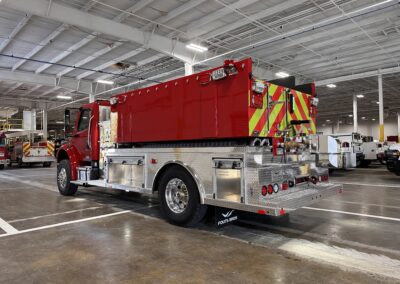

The 2000 Gallon Tanker is the leanest tanker/water tender on the Fouts Fire line, built on a Kenworth T480 chassis, with all the features you need for fast deployment and containment across a variety of calls. When you face bridges with weight restrictions or long, steep driveways, this tanker cannot be beat.

We have stock units available for striping, lettering, and delivery to your station within weeks, nationwide.

Trucks shown may contain optional features.

FEATURES

  • Kenworth T480 chassis
  • PACCAR PX-9 450 HP engine
  • Allison 3000 EVS transmission
  • Hale 1000 GPM PTO pump
  • 2000 gallon poly tank
  • 2000 gallon folding tank
  • One 10″ Newton swivel dump valve
  • Full-length hose bed
  • Two 2-1/2” direct tank fills
  • AMDOR roll-up doors
  • Whelen LED NFPA lighting & siren package

Features may vary based on your location and customization needs.

Chassis: Kenworth T480, 2-Door
Engine: Paccar PX-9, 450 HP
Transmission: Allison 3000, 5-Speed
GVW: 40,600 lbs. (Front Axle: 14,600 lbs | Rear Axle: 26,000 lbs.)
Wheels: Alcoa Mirror Polish Aluminum
Battery Conditioner: Kussmaul Chief 6012 series battery conditioner
Auxiliary Air Compressor: Kussmaul 12V auxiliary air compressor
Fuel Tank Capacity: 50 gallons
Air Horns: Two (2) Hadley chrome plated
Center Console: Yes
Tank: 2000 US gallons
Hard Suction: Two (2) 6.00″ X 10″ sections of suction hoses
Body: Aluminum diamond plate
Compartment Door Type: AMDOR roll-up doors, satin finish
Compartment L1 & R1: Approx. 60.00″WX26.00″DX27.00″H
Compartment L2 & R2: Approx. 60.00″WX26.00″DX27.00″H
Rear Camera Notch: Recessed mounting area for a backup camera
Rear Dump Valve: Swivel and manual extension, Stainless Steel

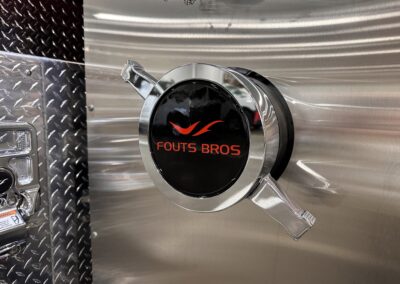

Direct Tank Fill: Two (2) 2.50″ Akron
Hose Bed Cover: Vinyl
Additional: Custom in-house graphics can be applied to the unit

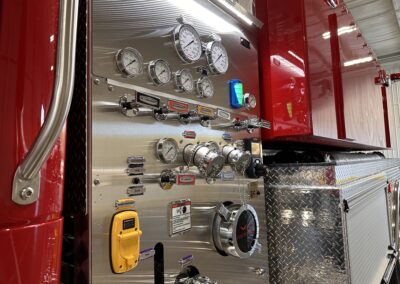

Pump: Hale, MBP, 1000 GPM, Side Mount
Special Features: Pump and Roll
Pump Shift: Pump and Roll – MBP/RSD
Hose Threads: NST hose threads
Master Pump Drain: Class 1 master pump drain
Priming System: Trident model manual AirPrime
Intake Relief Valve: Class 1 stainless-steel intake relief valve
Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
Water Level Gauge: One (1) Innovative Controls Soft-Glo & Three (3) Innovative Controls Soft-Glo Mini Monster
Discharges: Four (4) 2.50″, Two (2) 1.75″
12 Volt Electrical System: Yes
Cab Ground Lights: Two (2) LED chassis ground lights
Ground Lights: Pump panel, front, and rear
Ground Lights Activation: Activate when the parking brake is applied
Emergency Lights: Whelen M Series Emergency Lights
Scene Lights: Whelen EZ Series Scene Lights
Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
Siren and Control: One (1) Whelen model 295SLSA1
Siren Speaker: One (1) Federal Signal model ES100

• Larger pumps – up to 1500 GPM
• Multiple dump valve configurations
• Side or top mount pump modules
• Deck gun
• Federal Q2B siren
• Hannay electric rewind booster reel
• SCBA bottle holders
