The Fouts fire quick attack – built for quick response

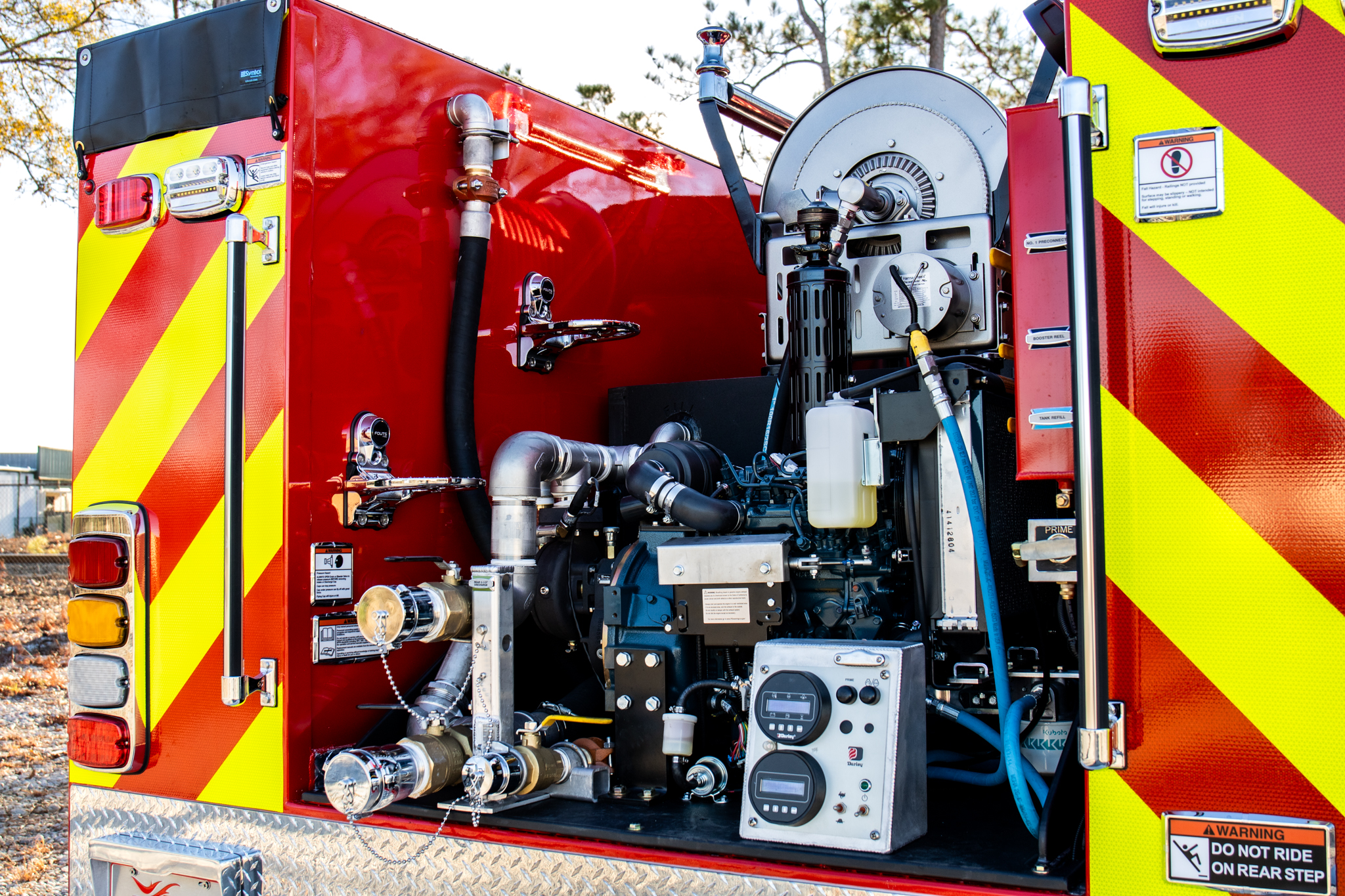

This apparatus is built on a Ford F‑550 4×4 Crew Cab chassis with an 18,000‑lb GVWR, a Buckstop steel front bumper, and front and rear super single tires with a full conversion kit. It includes a Warn M12000 winch, an aluminum center console, a full Kussmaul charging system with Super Auto Eject, and LED tire pressure monitoring. The Darley 1‑1/2AGE 24K pump delivers 180 GPM and features a Kubota diesel engine, electric primer, rear digital controls, and a Hannay electric‑rewind booster reel with 150 feet of 1‑inch hose. A 300‑gallon tank supports the skid unit, which is paired with a complete Whelen lighting package including warning lights, scene lights, rear directionals, and a JE2NFPA LED lightbar plus a rear‑vision camera system.
Trucks shown may contain optional features.
FEATURES
- Ford F‑550 4×4 Crew Cab chassis with 18,000‑lb GVWR
- Super single tires
- Darley 1‑1/2AGE 24K 180 GPM pump
- One (1) 2.5″ rear discharge
- One (1) 1.5″ discharge
- One (1) 1.5″ preconnect
- One (1) 1.0″ booster reel discharge
- Hannay electric‑rewind reel with 150′ of 1″ lightweight booster hose
- 300‑gallon tank
- Warn M12000 electric front winch
- AMDOR roll‑up compartment doors
- Whelen NFPA‑compliant LED warning, scene lighting, and siren package.
Features may vary based on your location and customization needs.

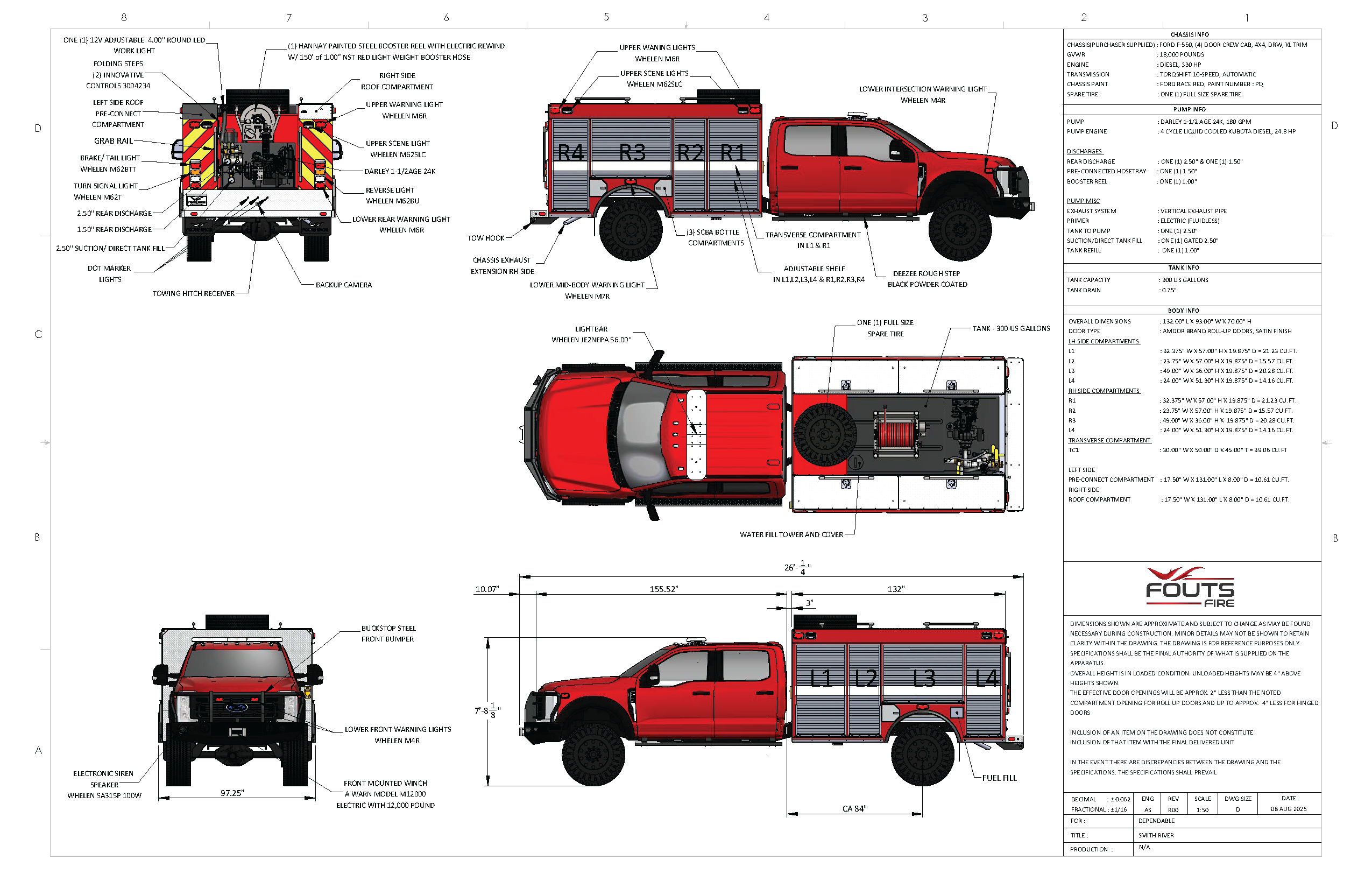

Download the Full Specs and Sales Drawing Here:
