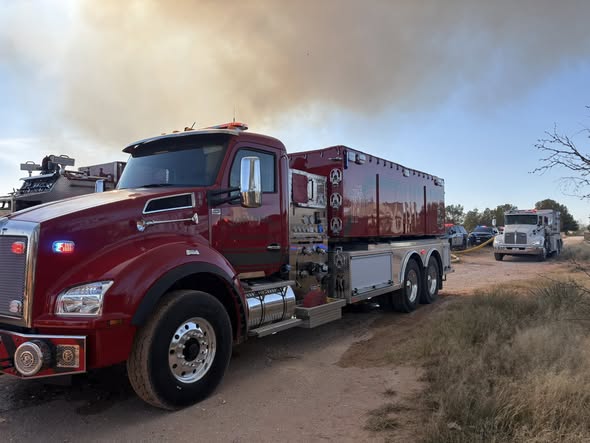

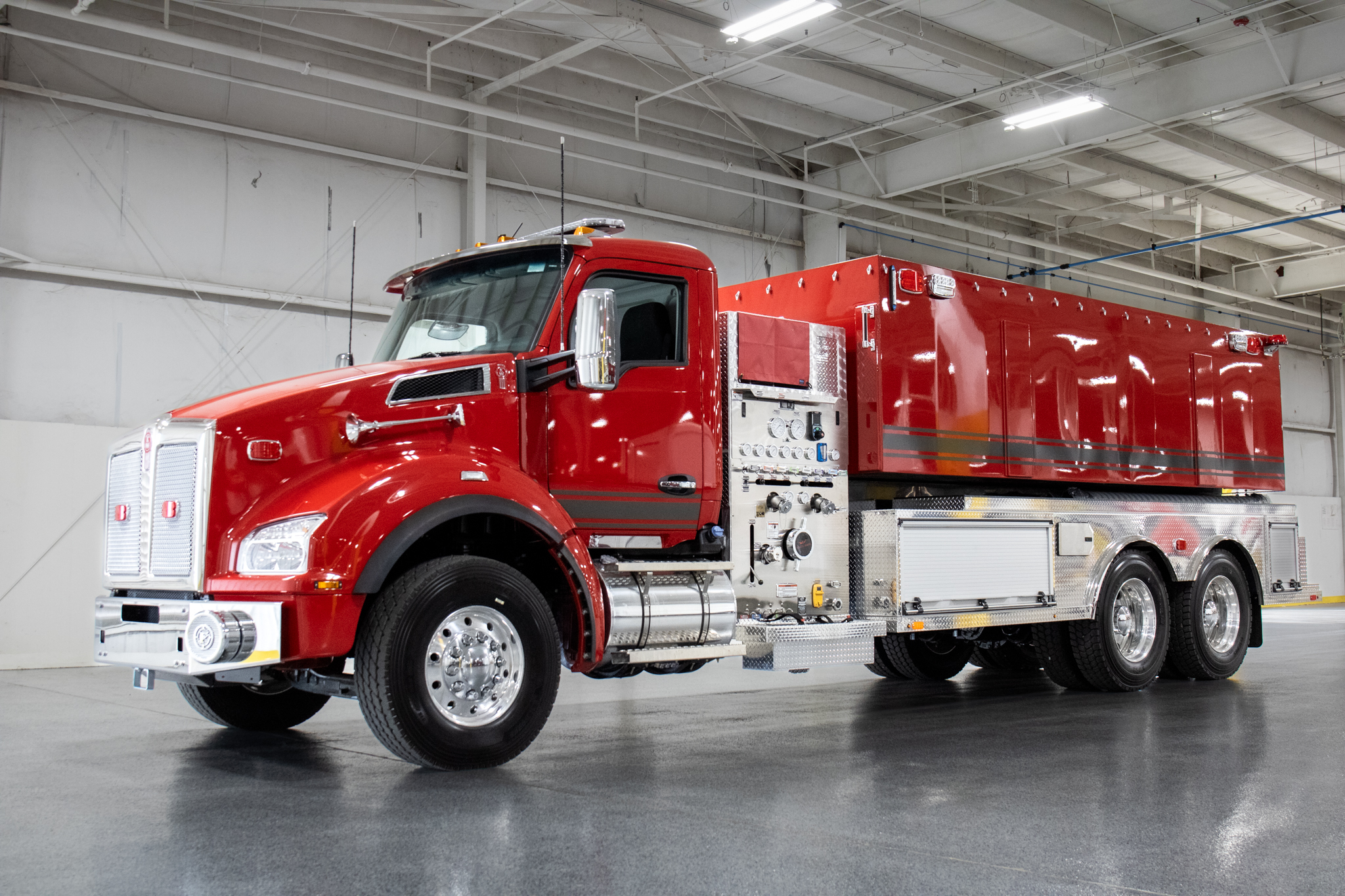

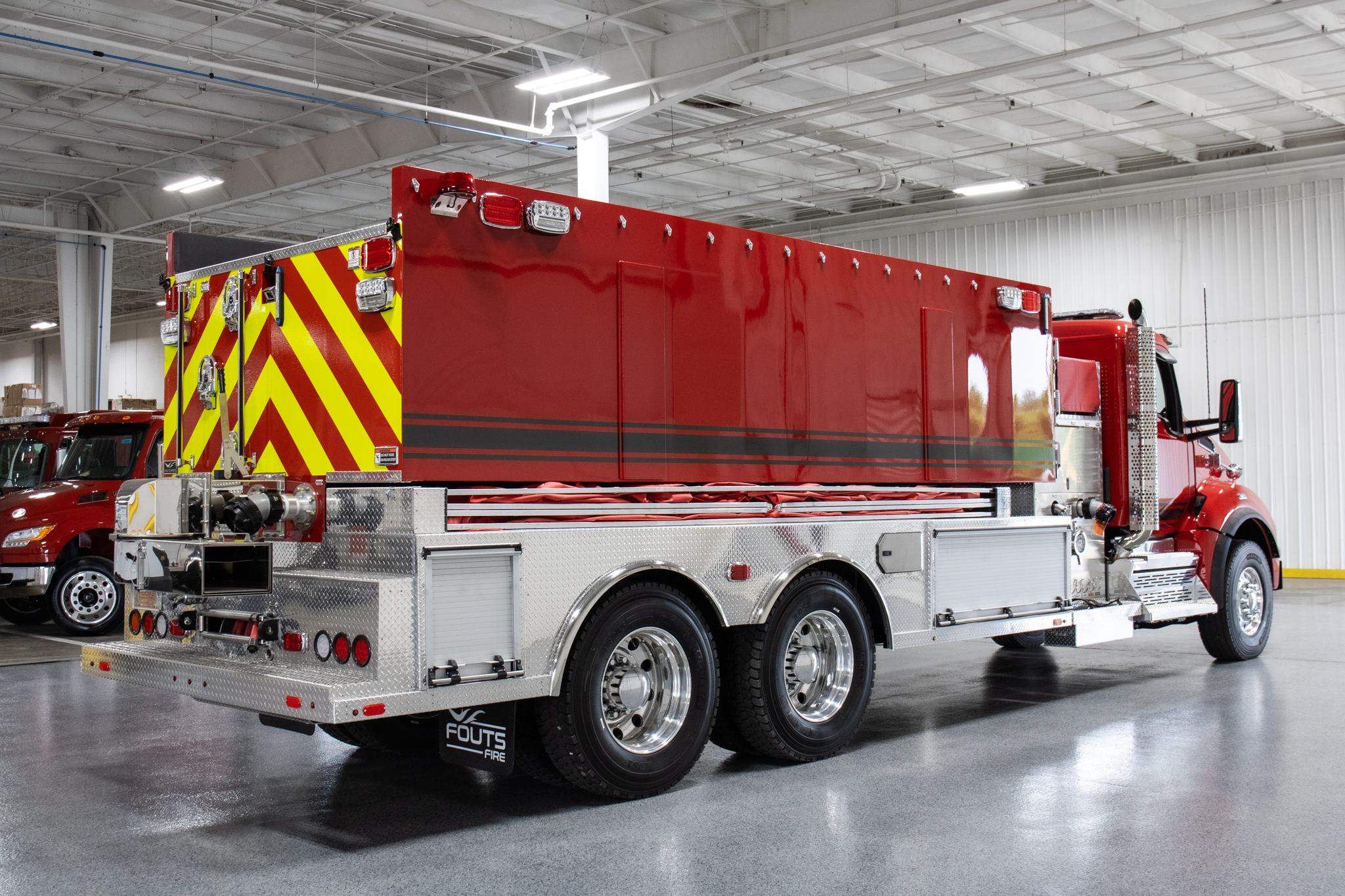

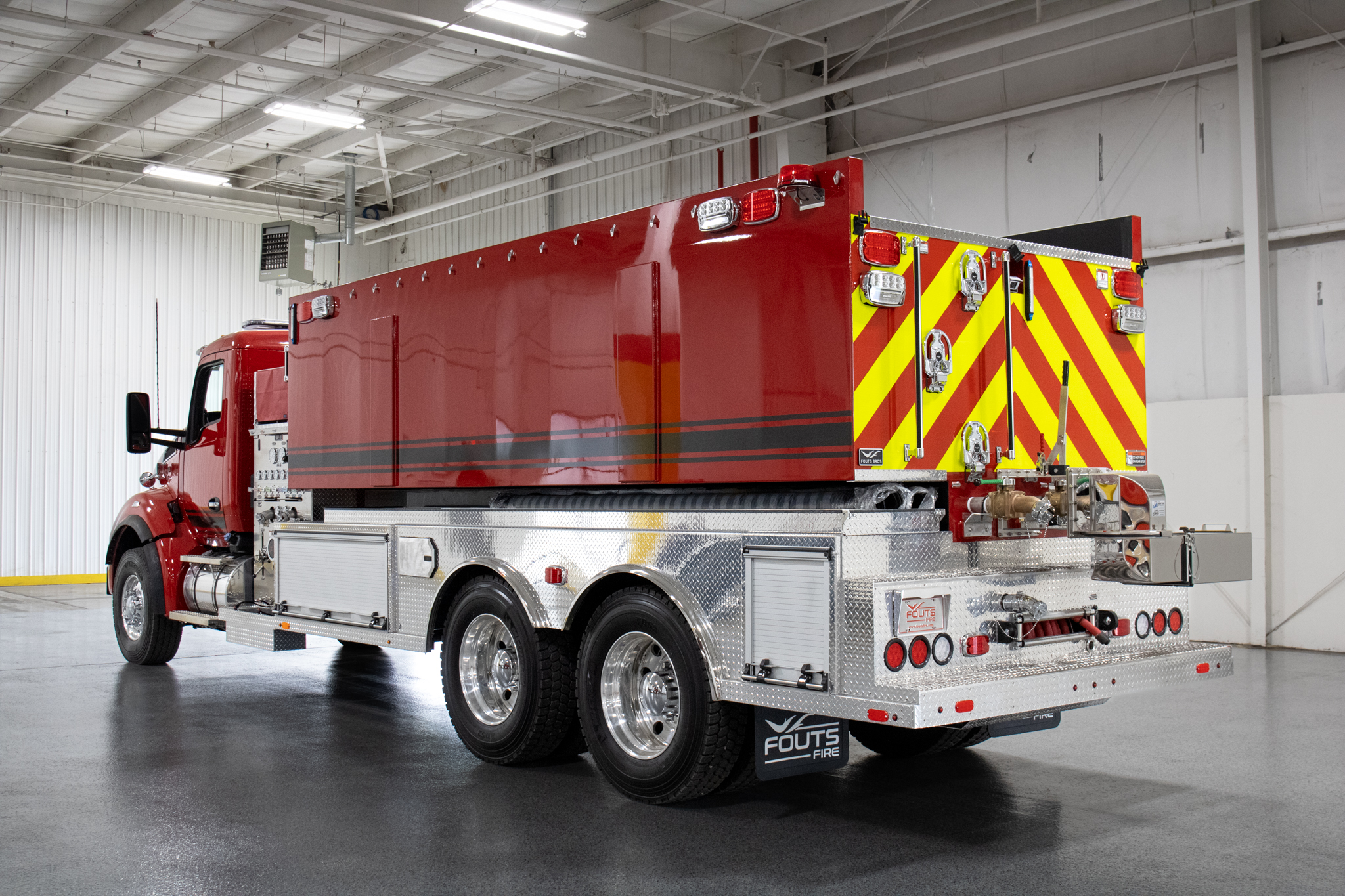

The 4000 Gallon Tanker
AVAILABLE FROM YOUR LOCAL DEALER
Rear dump valve, top fill, 1,250 GPM pump, and 4,000 gallons onboard. For departments running dry hydrant operations or long shuttle routes, this truck was spec’d with that in mind.
Massive Water Capacity
Rapid Deployment
Key Features
- Kenworth T-880 2-door chassis
- Cummins X15 565 HP engine
- Allison 4500 EVS 5-speed transmission
- Hale Qmax 1500 GPM pump
- 4000 gallon poly tank
- 4000 gallon folding tank
- Three (3) large water level gauges
- One (1) 10″ Newton swivel dump valve
- One (1) 2-1/2″ direct tank fill
- One (1) 4″ Fireman’s Friend direct tank fill
- AMDOR roll-up doors
- Whelen LED NFPA lighting & siren package
Features may vary based on your location and customization needs.
Chassis: Kenworth, T-880, 2-door
Engine: Cummins X15 565 HP
Transmission: Allison 4500 EVS 5-Speed
GVW: 72,000 lbs. (Front Axle: 20,000 lbs. | Rear Axle: 52,000 lbs.)
Wheels: Polished Aluminum
Battery Conditioner: Kussmaul Chief 6012 series battery conditioner
Auxiliary Air Compressor: Kussmaul 12V auxiliary air compressor
Fuel Tank Capacity: 60 gallons
Air Horns: Two (2) Hadley chrome
Center Console: Yes
Tank: 4000 US gallons
Hard Suction: Two (2) 6.00″ x 10′ sections of suction hoses
Body: Aluminum diamond plate
Compartment Door Type: AMDOR roll-up doors, satin finish
Compartment L1 & R1: Approx. 70.00″W x 26.00″D x 27.00″H
Compartment L2 & R2: Approx. 24.00″W x 26.00″D x 27.00″H
Rear Camera Notch: Recessed mounting area for a backup camera

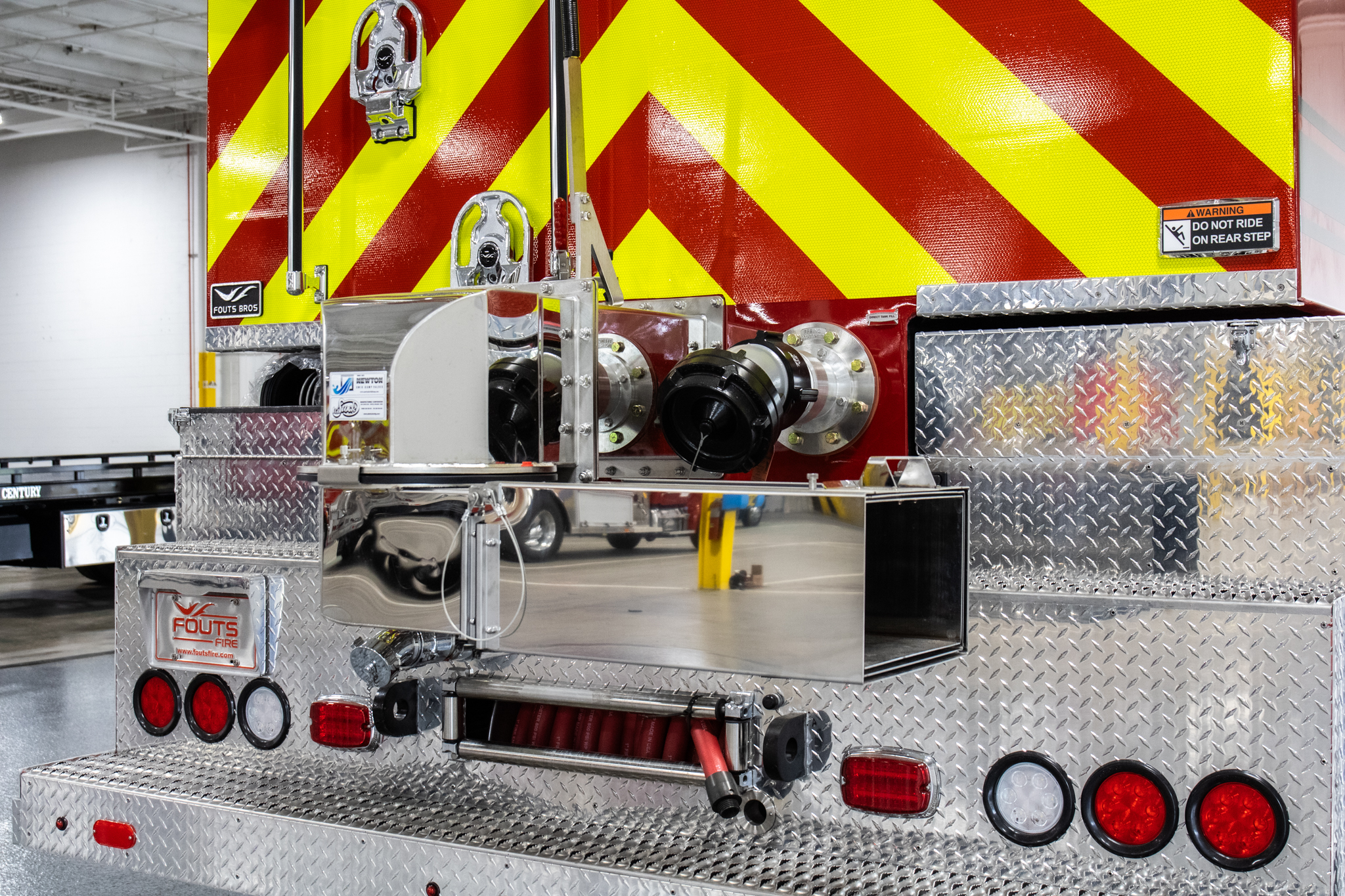

Rear Dump Valve: Swivel and manual extension, stainless steel
Direct Tank Fill: One (1) 2.50″ Akron, one (1) 4″ Akron
Hose Bed Cover: Vinyl
Additional: Custom in-house graphics can be applied to the unit

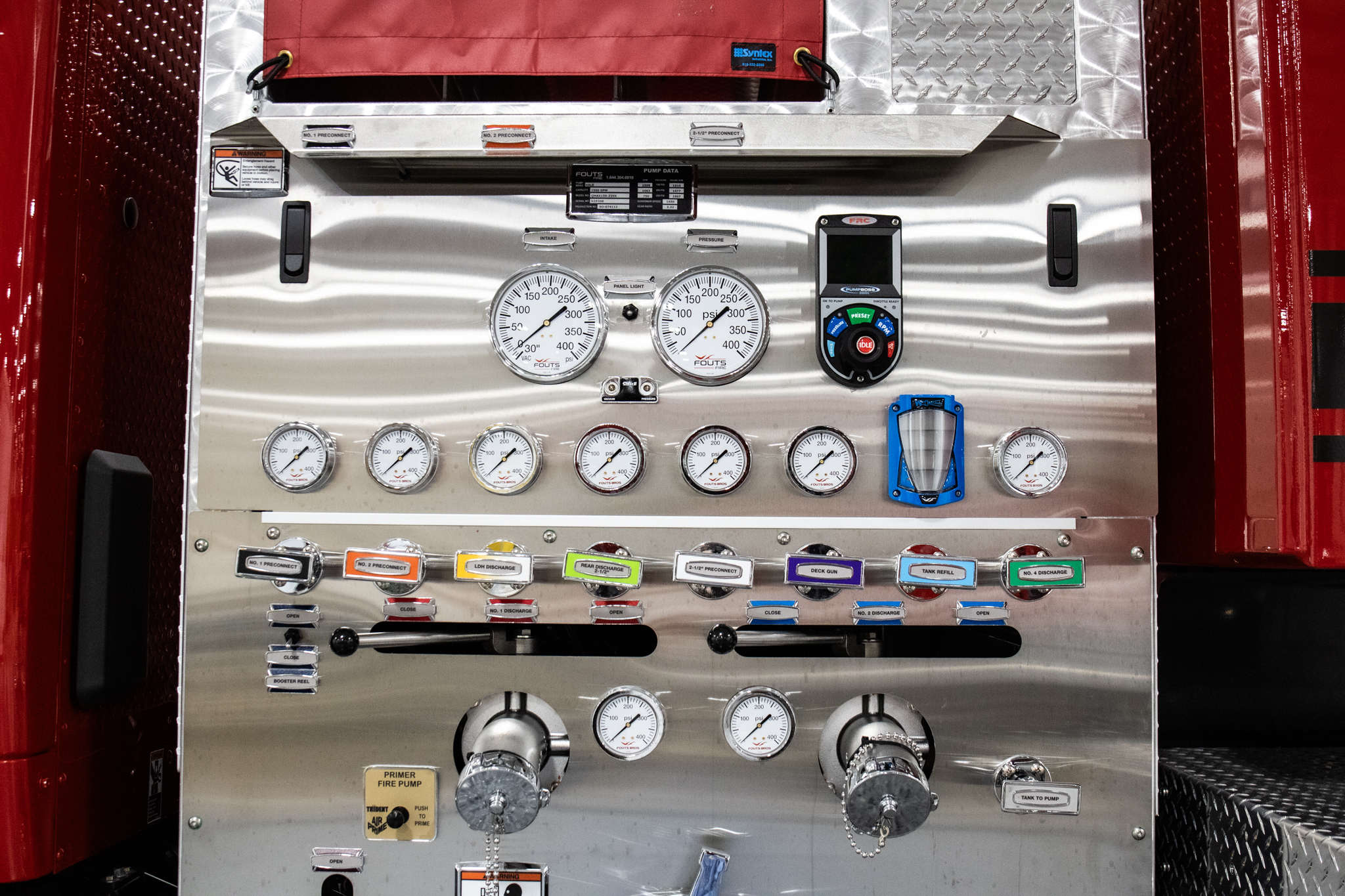

Pump: Hale, QMax, 1500 GPM, side mount
Special Features: Stationary pumping
Power Take Off: 10-bolt Chelsea model 870-XDFJP-B5XV

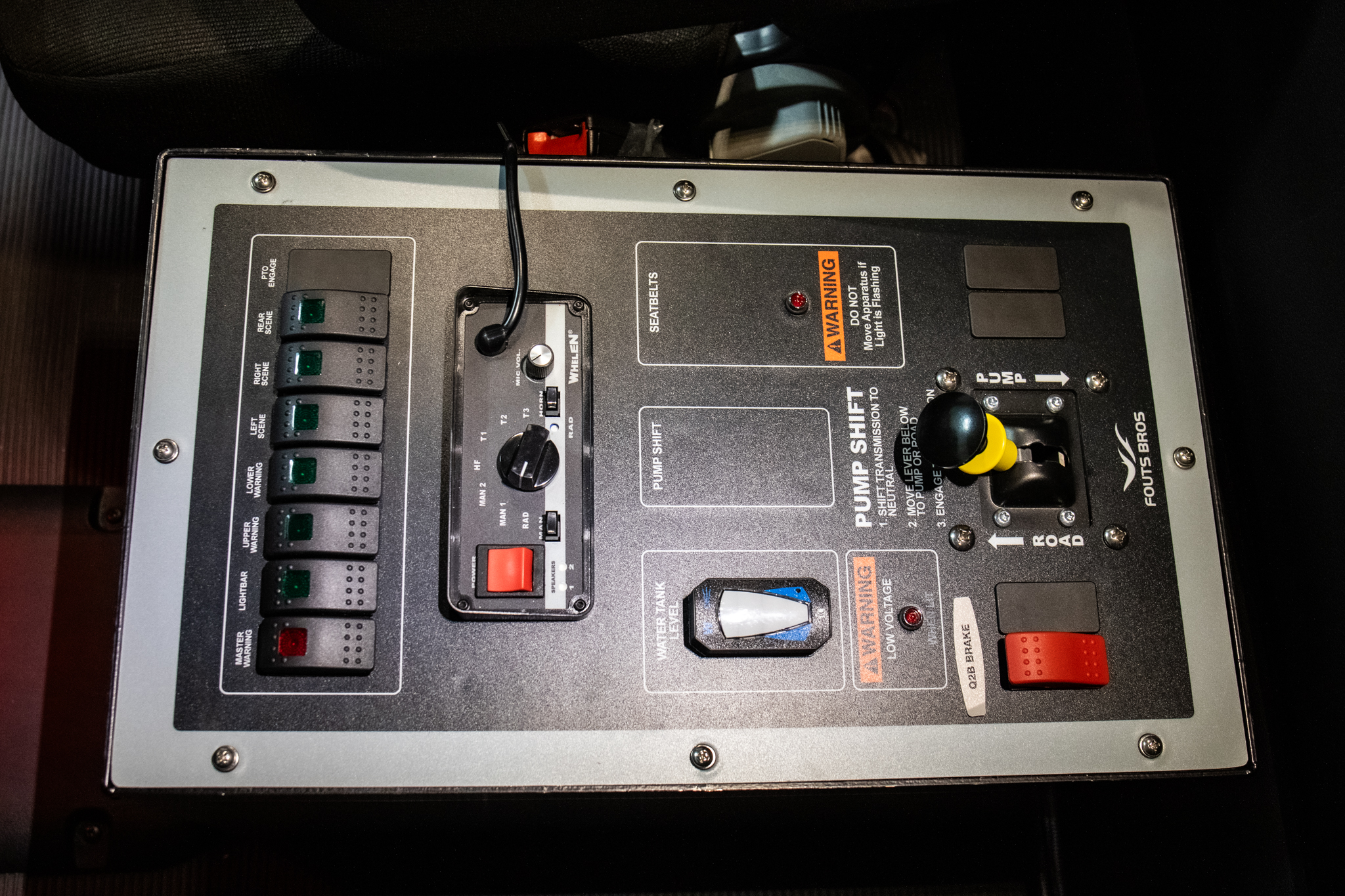

Pump Shift: Stationary – QMax
Hose Threads: NST hose threads
Master Pump Drain: Class 1 master pump drain
Priming System: Trident model manual AirPrime
Intake Relief Valve: Class 1 stainless-steel intake relief valve
Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
Water Level Gauge: One (1) Innovative Controls Soft-Glo & three (3) Innovative Controls Soft-Glo Mini Monster
Discharges: Four (4) 2.50″, one (1) 3″x5″ deckgun, and two (2) 1.75″
12 Volt Electrical System: Yes
Cab Ground Lights: Two (2) LED chassis ground lights
Ground Lights: Pump panel, front, and rear
Ground Lights Activation: Ground lights activate when the parking brake is applied
Emergency Lights: Whelen M Series Emergency Lights
Scene Lights: Whelen M Series Emergency Lights
Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
Siren and Control: One (1) Federal Signal model ES100
• Multiple dump valve configurations
• Side or top mount pump modules
• Federal Q2B siren
• Hannay electric rewind booster reel
• SCBA bottle holders
