Our trusted workhorse, delivered fast at a great value

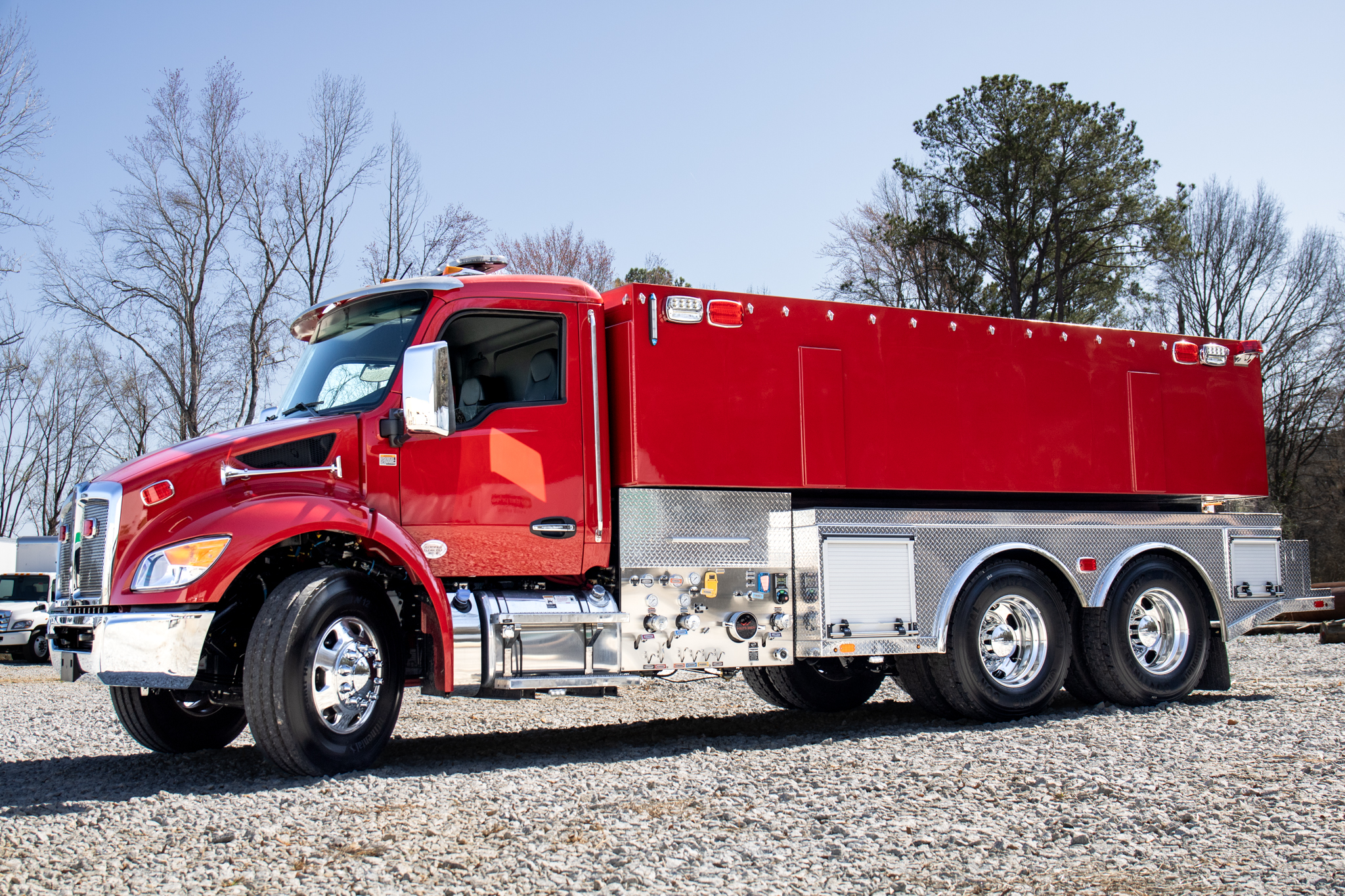

The CJ Series 3000 Gallon Water Tender was the original model Fouts built to serve departments in the Western U.S. and other regions where terrain demands a shorter, more agile apparatus. Named in honor of one of our founders, the CJ Series features a compact wheelbase and a reduced pump panel—nearly half the size of our standard 3000 Gallon configuration—making it ideal for narrow roads, steep grades, and tight turns.
See the standard specs for our CJ Series Water Tenders below, and check out some of our recent deliveries. Our sales team is standing by to provide you a custom quote and to tell you about units on the production line and ready to deliver soon. Just fill out a quote request form or give us a call.
Trucks shown may contain optional features.
FEATURES
- Kenworth T480 chassis
- PACCAR PX-9 450 HP engine
- Allison 3000 EVS transmission
- Hale 1000 GPM PTO pump
- Three (3) large water level gauges
- 3000 gallon poly tank
- 3000 gallon folding tank
- One (1) 10″ Newton swivel dump valve
- Full-length hose bed
- Two (2) 2-½ inch direct tank fills
- AMDOR roll-up door compartments
- Whelen LED NFPA lighting & siren package
- Chassis: Kenworth, T-480, 2-Door
- Engine: Paccar PX-9, 450 HP – built for fire department operations that demand power
- Transmission: Allison 3000, 5-Speed – designed for high-demand firefighting vehicles
- GVW: 54,600 lbs. (Front Axle: 14,600 lbs. | Rear Axle: 40,000 lbs.)
- Wheels: Polished Aluminum – corrosion-resistant for long-term fire service use
- Battery Conditioner: Kussmaul Chief 6012 series
- Auxiliary Air Compressor: Kussmaul 12V – ensures reliableÂ
- Fuel Tank Capacity: 50 gallons – optimized for long-distance water supply missions
- Air Horns: Two (2) Hadley chrome-plated
- Center Console: Yes – designed for easy fire equipment control & access Â
- Back-up Alarm: One (1) 97 DB for enhanced driver safety
- Tank: 3000 US gallons to carry an ample water supply
- Hard Suction: Two (2) 6.00″ x 10′ sections designed for effective fire hydrant access
- Body: Aluminum diamond plate which is lightweight yet durable fire apparatus body
- Compartment Door Type: AMDOR roll-up doors with a satin finish
- Compartment L1 & R1: Approx. 60.00″W x 26.00″D x 27.00″HÂ
- Compartment L2 & R2: Approx. 24.00″W x 26.00″D x 27.00″H
- Rear Camera Notch: Recessed mounting area for a backup camera
- Rear Dump Valve: A stainless steel swivel and manual extension
- Direct Tank Fill: Two (2) 2.50″ Akron – rapid water pump connections
- Hose Bed Cover: Vinyl – Protects hoses from debris.
- Additional: Custom in-house graphics available –Add logos & striping.
- Pump: Hale, MBP, 1000 GPM, Side Mount with fast water tank refill capability
- Special Features: Pump and RollÂ
- Power Take Off: 10-bolt Chelsea model 870-XDFJP-B5XV
- Pump Shift: Pump and Roll – MBP/RSD, Allows water flow while moving
- NST Hose Threads: compatible with standard fire hydrant connections
- Master Pump Drain: Class 1 master pump drain
- Priming System: Trident model manual AirPrime
- Intake Relief Valve: Class 1 stainless steel intake relief valve
- Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
- Water Level Gauge: One (1) Innovative Controls Soft-Glo & three (3) Innovative Controls Soft-Glo Mini Monster

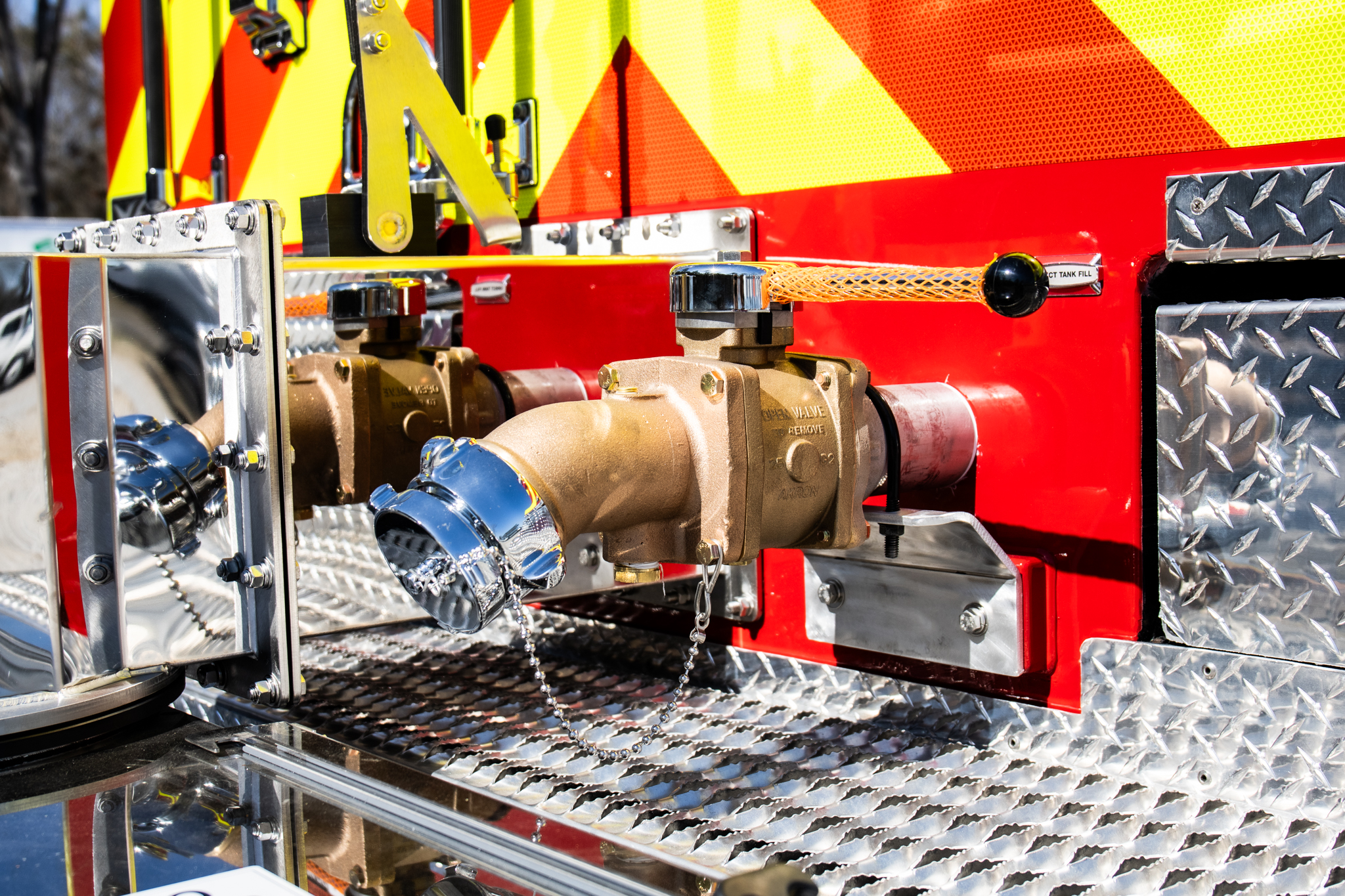

- Discharges: Four (4) 2.50″ and two (2) 1.75″ for efficient water supply
- 12 Volt Electrical System: Yes
- Cab Ground Lights: Two (2) LED chassis ground lights for night operations
- Ground Lights: Illuminates fire ground areas around the vehicle
- Ground Lights Activation: Activates when the parking brake is applied
- Emergency Lights: Whelen M Series Emergency Lights – NFPA compliant
- Scene Lights: Whelen M Series Emergency LightsÂ
- Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
- Siren and Control: One (1) Federal Signal model ES100
The custom fire apparatus features include:
• Booster reel
• Federal Q2B siren
• Pole lights
