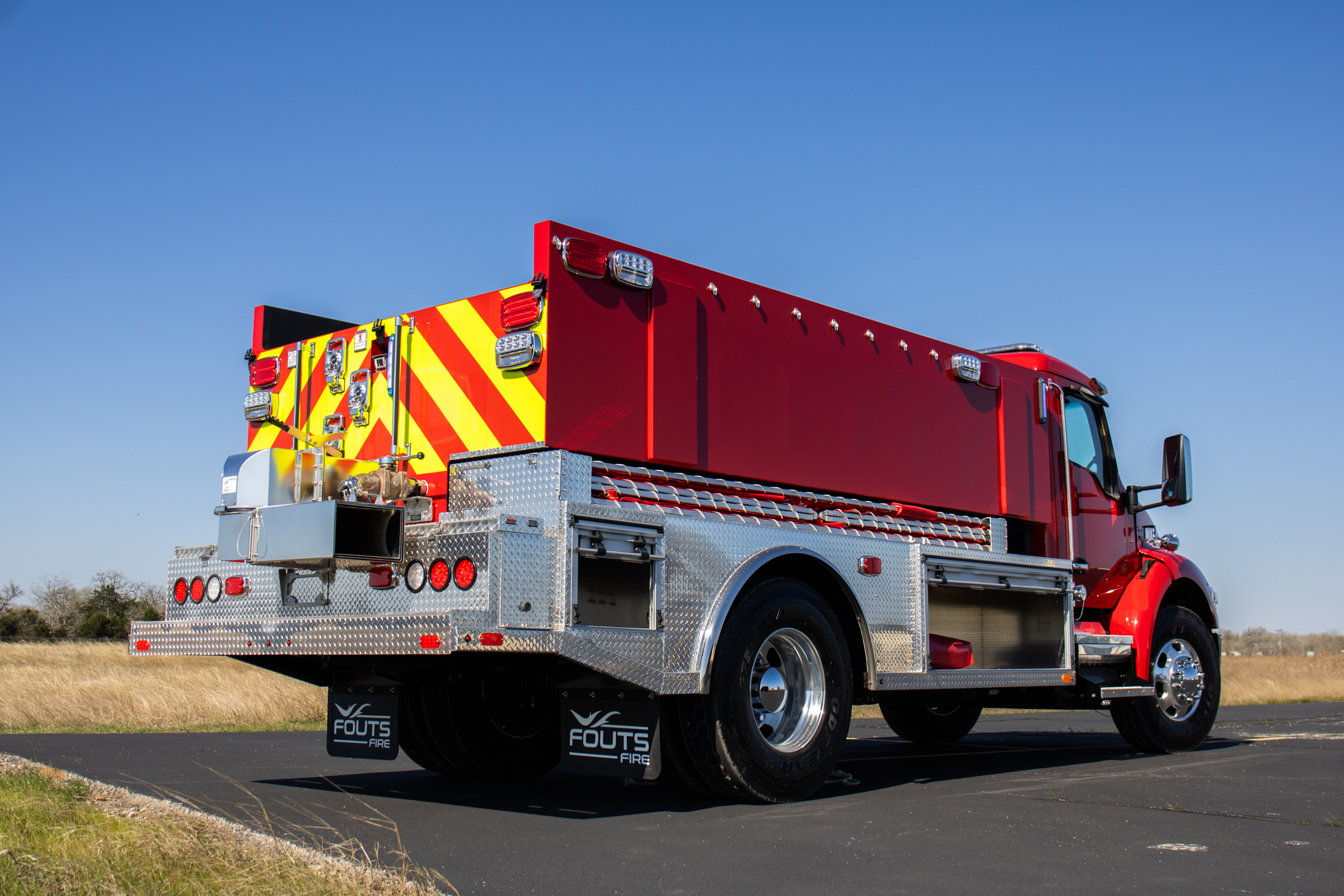

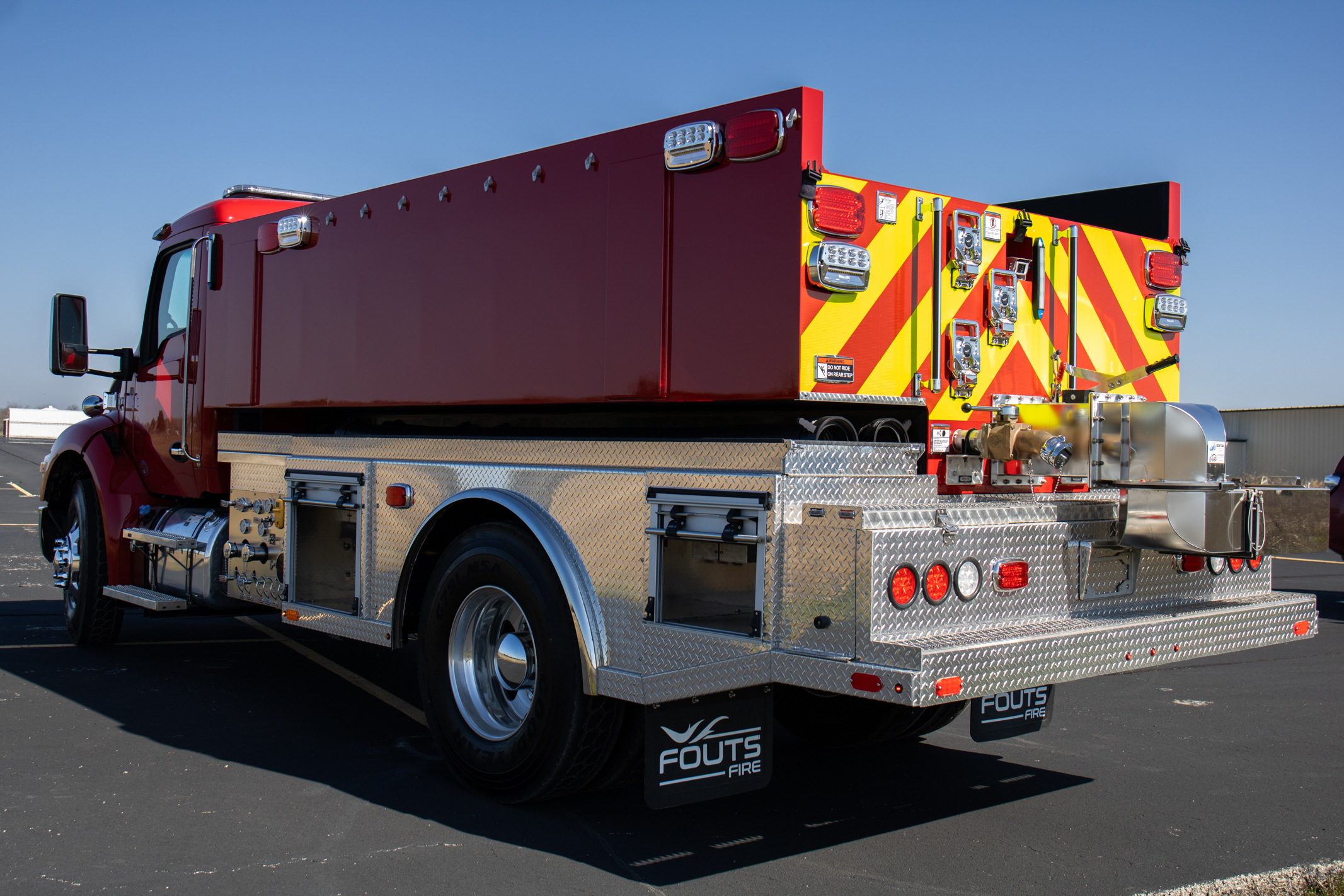

2025 FOUTS 2000 GALLON CJ SERIES WATER TENDER - #74100 - FIRE APPARATUS SOLUTIONS

AVAILABLE ONLY IN CALIFORNIA THROUGH FIRE APPARATUS SOLUTIONS

New for 2025: we’re bringing back our CJ Series line of water tenders. The Fouts CJ Tender line packs a ton of punch anywhere you need it to go. The shorter wheelbase makes navigating city streets easier than ever, and it’s the smoothest ride of any water tender on the market. Our CJ Series is available this year with both 2000 gallon and 3000 gallon tanks.

The unit below (SO #74100) is coming to our dealer partners at Fire Apparatus Solutions this month. It’s available for immediate purchase, striping, lettering, and a fast delivery only to fire departments in California.

1762 S Sycamore Ave,
Rialto, CA 92376

Sales rep: Travis Pistochini

Get a Quote

Trucks shown may contain optional features.

2000 GALLON CJ WATER TENDER FEATURES

  • Kenworth T480 chassis
  • PACCAR PX-9 450 HP engine
  • Allison 3000 EVS transmission
  • Hale 750 GPM PTO side kick pump
  • Three (3) large water level gauges
  • 2000 gallon poly tank
  • 2000 gallon folding tank
  • One (1) 10″ Newton swivel dump valve
  • Full-length hosebed
  • Two (2) 2-½ inch direct tank fills
  • AMDOR roll-up door compartments
  • Whelen LED NFPA lighting & siren package
Chassis: Kenworth, T-480, 2-Door
Engine: Paccar PX-9, 450 HP
Transmission: Allison 3000, 5-Speed
GVW: 40,600 lbs. (Front Axle: 14,600 lbs | Rear Axle: 26,000 lbs.)
Wheels: Polished Aluminum
Battery Conditioner: Kussmaul Chief 6012 series battery conditioner
Auxiliary Air Compressor: Kussmaul 12V auxiliary air compressor
Fuel Tank Capacity: 50 gallons
Air Horns: Two (2) Hadley chrome plated
Center Console: Yes
Back-up Alarm: One (1) 97 DB back-up alarm
Tank: 3000 US gallons
Hard Suction: Two (2) 6.00″ x 10′ sections of suction hoses
Body: Aluminum diamond plate
Compartment Door Type: AMDOR roll-up doors, satin finish
Compartment L1 & R1: Approx. 60.00″W x 26.00″D x 27.00″H
Compartment L2 & R2: Approx. 18.00″W x 26.00″D x 18.00″H
Rear Camera Notch: Recessed mounting area for a backup camera

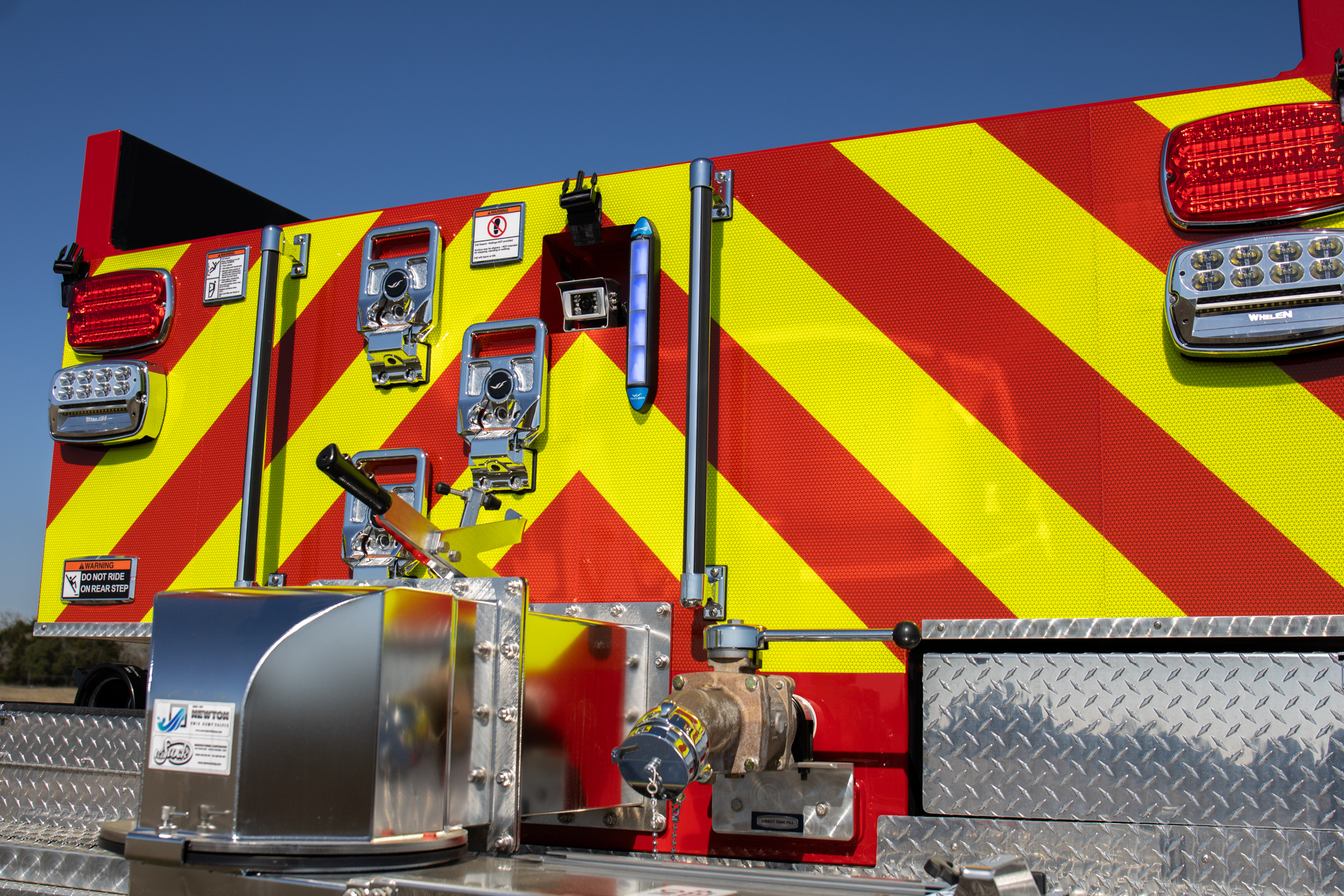

Rear Dump Valve: Swivel and manual extension, Stainless Steel
Direct Tank Fill: Two (2) 2.50″ Akron
Hose Bed Cover: Vinyl
Additional: Custom in-house graphics can be applied to the unit
Pump: Hale, MBP, 750 GPM, Side Kick
Special Features: Pump and Roll
Power Take Off: Ten (10) bolt Chelsea model 870-XDFJP-B5XV
Pump Shift: Pump and Roll – MBP/RSD
Hose Threads: NST hose threads
Master Pump Drain: Class 1 master pump drain
Priming System: Trident model manual AirPrime
Intake Relief Valve: Class 1 stainless-steel intake relief valve
Pressure Governor System: Fire Research Pump Boss Max series PBA501-D00
Water Level Gauge: One (1) Innovative Controls Soft-Glo & three (3) Innovative Controls Soft-Glo Mini Monster
Discharges: Three (3) 2.50″ and Two (2) 1.75″
12 Volt Electrical System: Yes
Cab Ground Lights: Two (2) LED chassis ground lights
Ground Lights: Pump panel, front, and rear
Ground Lights Activation: Ground lights activate when the parking brake is applied
Emergency Lights: Whelen M Series Emergency Lights
Scene Lights: Whelen M Series Emergency Lights
Lightbar: One (1) Whelen model JE2NFPA 56.00″ lightbar
Siren and Control: One (1) Federal Signal model ES100

• Larger pumps—up to 1000 GPM
• Multiple dump valve configurations
• Federal Q2B siren
• Hannay electric rewind booster reel
• SCBA bottle holders
